5 Core Compression Driver 1/1.3/1.75/2 Inch 8Ohm Titanium PA Horn Tweeter

$54.00 $94.21

Ask about this product

DESCRIPTION

dropship 5 Core Compression Driver 1/1.3/1.75/2 Inch 8Ohm Titanium PA Horn Tweeter

Product Description

Explore a lineup of compression drivers for PA, horn, car audio, and sound reinforcement applications. Pick from models with different peak power ratings, voice coil sizes, magnet weights, diaphragms, and mounting styles to match your setup. Options include compact 1-inch designs and larger 1.75-inch or 2-inch drivers for different performance requirements.

The lineup supports 8-ohm systems and offers high-frequency response for vocals, instruments, and detailed sound. With screw-on or twist-on installation options, these horn drivers can simplify replacements or upgrades when matched with compatible equipment. Compare the available models and choose the configuration that best fits your system and application.

dropship 5 Core Compression Driver 1/1.3/1.75/2 Inch 8Ohm Titanium PA Horn Tweeter
Features

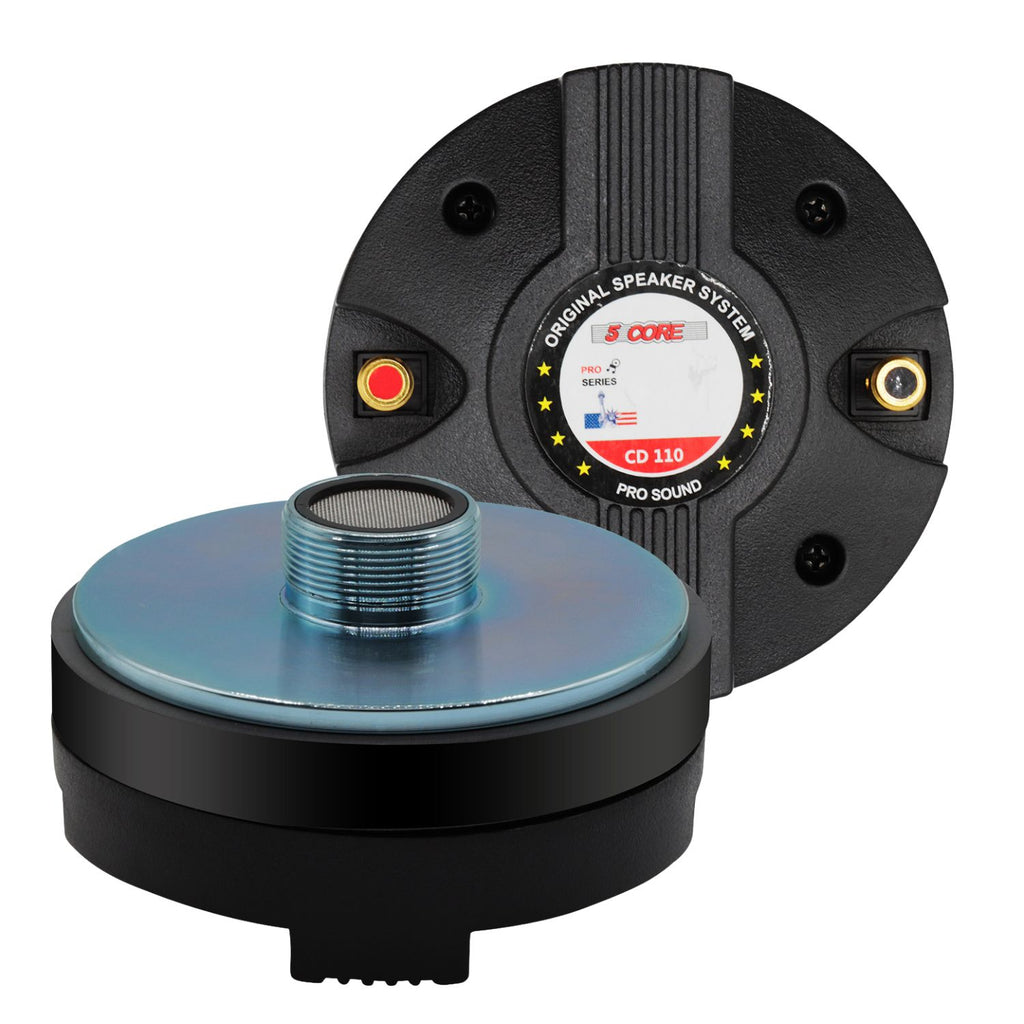

MODEL-SPECIFIC MAGNETS	TITANIUM DIAPHRAGMS	18 TPI THREAD	INDOOR OUTDOOR USE
CD 90 uses a 13 oz Y30 magnet, CD 110 uses 20 oz Y30, and CD 135 features a larger 33 oz Y30 magnet.	CD 110, CD 135, and CD 90 use titanium diaphragms to support detailed high-frequency reproduction across their rated response.	A standard 18 TPI screw-on connection, helping simplify matching with compatible horn assemblies.	The drivers are designed to be use in any weather condition, indoor or outdoor.

dropship 5 Core Compression Driver 1/1.3/1.75/2 Inch 8Ohm Titanium PA Horn Tweeter

Compression Driver Specification and Package Include:

1" Voice Coil	1" Throat Size \| 20W RMS / 200W Peak Power \| 1.2kHz–20kHz Frequency Response \| 8Ω Impedance \| 18oz Magnet (110mm) \| Aluminium Construction \| Includes: 1x Driver
1.75" Voice Coil	1.75" Size \| 80W RMS / 800W Peak Power \| 8Ω Impedance \| 1kHz–20kHz Frequency Response \| 1.75" Voice Coil \| Titanium Diaphragm \| Y30 20oz Magnet \| Aluminium Build \| 18 TPI Mounting \| Dimensions: 5.1"W x 5.2"L x 3.2"H \| Includes: 1x Compression Driver
2" Voice Coil	2" Size \| 100W RMS / 1000W Peak Power \| 8Ω Impedance \| 1kHz–20kHz Frequency Response \| 2" Voice Coil \| Titanium Diaphragm \| Y30 33oz Magnet \| Aluminium Build \| 18 TPI Screw-On Mounting \| Dimensions: 5.3"W x 5.3"L x 3.2"H \| Includes: 1x Compression Driver
1.35" Voice Coil	1.35" Size \| 50W RMS / 500W Peak Power \| 8Ω Impedance \| 1kHz–20kHz Frequency Response \| 1.35" Voice Coil \| Titanium Diaphragm \| Y30 13oz Magnet \| Aluminium Build \| Dimensions: 4.1"W x 4.2"L x 3.2"H \| Includes: 1x Compression Driver

dropship 5 Core Compression Driver 1/1.3/1.75/2 Inch 8Ohm Titanium PA Horn Tweeter

About Brand

5 Core, ISO Certified headquartered in California, warehouse in Ohio, USA. Offering 600+ products since 1984. Tested and Certified Products, ensuring highest quality and reliability.
